 STEPPING MOTOR >> Closed loop Stepper Motor >> 23HS(57BYGH 1.8°) Closed-loop stepper motor

   Explaintion

Model:23HS57BYGH 1.8°) Closed-loop stepper motor

Step Accuracy步距角精度)———————————±5%

Temperature Rise温升)—————————-80℃ Max.

Ambient Temperature Range工作环境温度)———- -20℃~+50℃

Insulation Resistance绝缘电阻)———–100MΩ Min.50V DC

Dielectric Strength介电强度)—————–500V AC 1minute

Electrical Specifications电机参数):

Series

Model

Step

Angle

(°)

Motor

Length

(mm)

Phase Current

(A)

Phase

Resistance

(Ω)

Phase

Inductance

(mH)

Holding

Torque

(N.cm Min)

Rotor

Inertia

(g.cm²)

Lead

Wire

(No.)

Motor

Weight

(g)

步距角

机身长

相电流(A)

相电阻(Ω)

相电感(mH)

静力矩(N.m)

转子惯量(g.cm²

引出线

重量(g)

23HS56-3004A-E1000

1.8

56

3.0

1.1

3

1.0

280

4

680

23HS76-3004A-E1000

1.8

76

3.0

0.5

2.4

1.6

440

4

1050

23HS84-4004A-E1000

1.8

84

4.0

0.7

2.7

2.0

530

4

1130

23HS100-4204A-E1000

1.8

100

4.2

0.9

3.8

2.4

680

4

1250

23HS112-4204A-E1000

1.8

112

4.2

0.9

3.8

2.5

800

4

1400

Note(备注):We can manufacture products according to customers requirement.(我们可以根据客户的要求进行定制)。

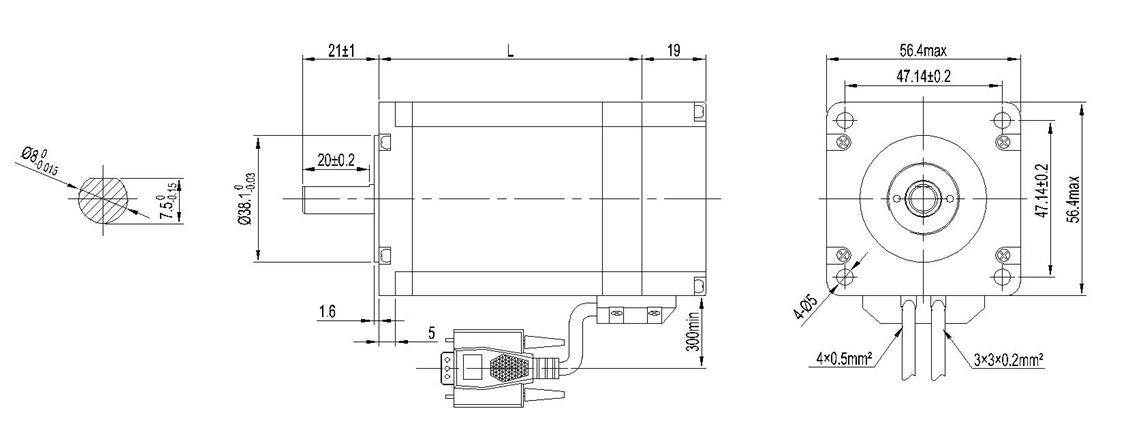

电机机械尺寸Dimensions unit=mm E

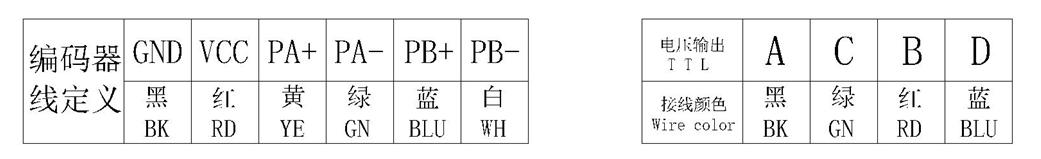

电机接线图Wiring Diagram
