 STEPPING MOTOR >> Gearbox Stepper Motor >> 11HS(28BYGH 1.8°) Planetary Gearbox Stepper motor

   Explaintion

Model:11HS28BYGH 1.8°) 行星减速电机 Planetary Gearbox Stepper motor

行星减速机常规参数 Planetary gearbox Parameter

Series

Model

Step

Angle

(°)

Motor

Length

(mm)

Phase Current

(A)

Phase

Resistance

(Ω)

Phase

Inductance

(mH)

Holding

Torque

(kg.cm Min)

Rotor

Inertia

(g.cm²)

Lead

Wire

(No.)

Motor

Weight

(g)

步距角

机身长

相电流(A)

相电阻(Ω)

相电感(mH)

静力矩(Kg.cm)

转子惯量(g.cm²

引出线

重量(g)

11HS33-0804

1.8

33

0.8

5.3

3.3

0.6

8

4

110

11HS45-0804

1.8

45

0.8

7.8

5.4

0.8

11

4

140

11HS48-0804

1.8

48

0.8

8.6

6.7

0.9

13

4

180

Note(备注):We can manufacture products according to customers requirement.(我们可以根据客户的要求进行定制)。

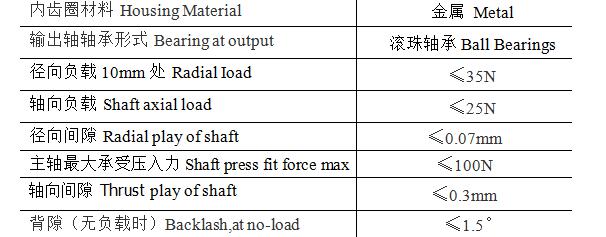

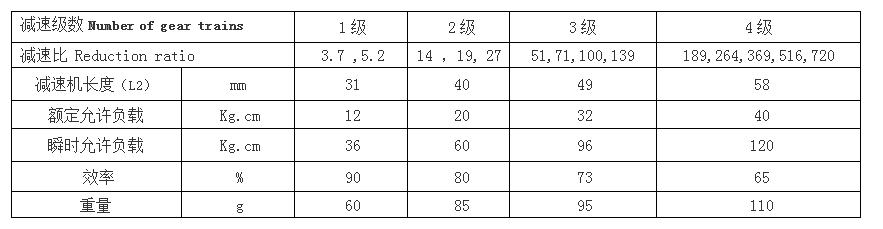

M28GXR 行星减速机技术参数PLANET GEAR Electrical Specifications

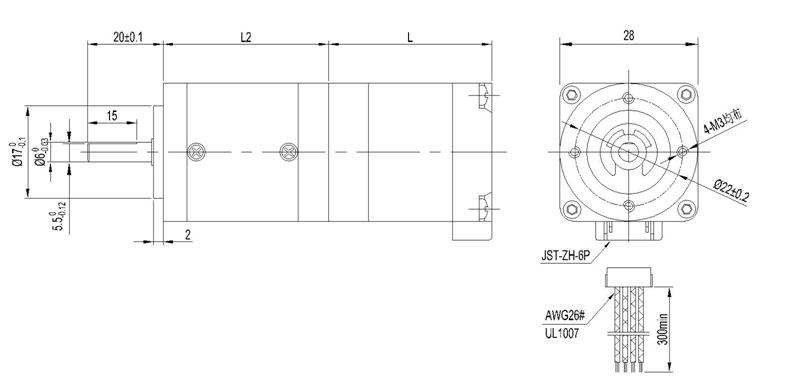

电机机械尺寸Dimensions unit=mm

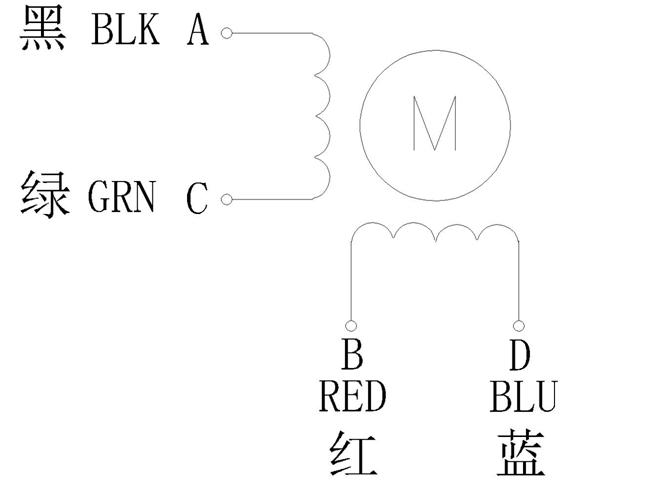

电机接线图Wiring Diagram
