 STEPPING MOTOR >> Gearbox Stepper Motor >> 17HS(42BYGH 1.8°) Planetary Gearbox Stepper motor

   Explaintion


Model:17HS42BYGH 1.8°) 行星减速电机 Planetary Gearbox Stepper motor

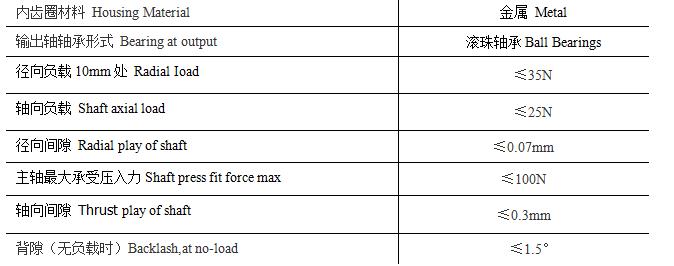

行星减速机常规参数 Planetary gearbox Parameter

Series

Model

Step

Angle

(°)

Motor

Length

(mm)

Phase Current

(A)

Phase

Resistance

(Ω)

Phase

Inductance

(mH)

Holding

Torque

(N.cm Min)

Rotor

Inertia

(g.cm²)

Lead

Wire

(No.)

Motor

Weight

(g)

步距角

机身长

相电流(A)

相电阻(Ω)

相电感(mH)

静力矩(N.cm)

转子惯量(g.cm²

引出线

重量(g)

17HS20-0804A

1.8

20

0.8

3.8

4.5

10

24

4

120

17HS28-0604A

1.8

28

0.6

8

10

12

30

4

150

17HS34-1304A

1.8

34

1.3

2.4

2.8

28

34

4

220

17HS40-1304A

1.8

40

1.3

2.5

5.0

40

54

4

280

17HS40-1704A

1.8

40

1.7

1.5

2.8

40

54

4

280

17HS48-1704A

1.8

48

1.7

1.8

3.2

52

68

4

350

17HS60-1704A

1.8

60

1.7

2.3

4.6

70

80

4

480

Note(备注):We can manufacture products according to customers requirement.(我们可以根据客户的要求进行定制)。

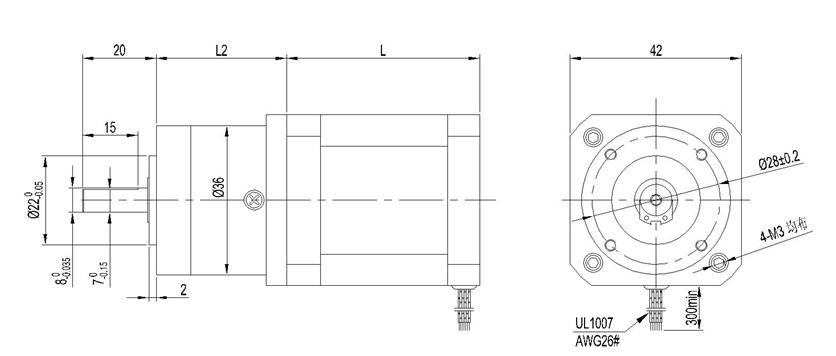

电机机械尺寸Dimensions unit=mm

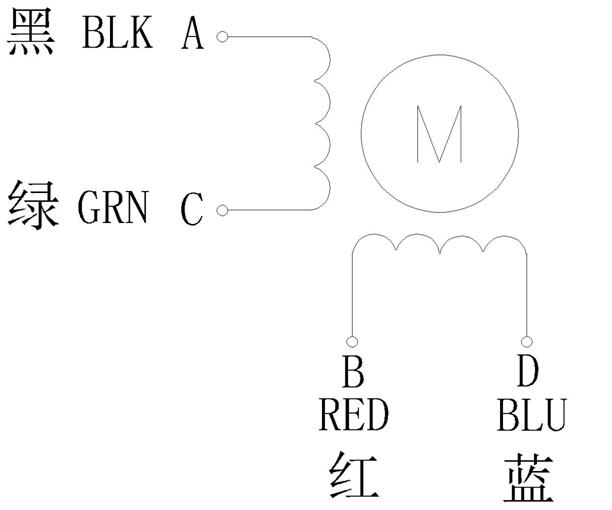

电机接线图Wiring Diagram
