Model:34HS（86BYGH 1.8°) 偏心减速电机 Gearbox Stepper motor

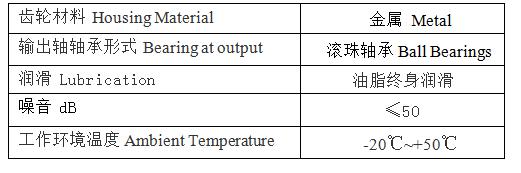

偏心减速机常规参数 Gearbox Parameter
Electrical Specifications（电机参数）:
|
Series
Model |
Step
Angle
(°) |
Motor
Length
(mm) |
Phase Current
(A) |
Phase
Resistance
(Ω) |
Phase
Inductance
(mH) |
Holding
Torque
(N.cm Min) |
Rotor
Inertia
(g.cm²) |
Lead
Wire
(No.) |
Motor
Weight
(g) |
|
步距角 |
机身长 |
相电流（A) |
相电阻（Ω) |
相电感（mH) |
静力矩（N.m) |
转子惯量（Kg.cm²） |
引出线 |
重量(Kg) |
|
34HS68-4004A |
1.8 |
68 |
4.0 |
0.63 |
3.2 |
2.6 |
0.85 |
4 |
2 |
|
34HS80-6004A |
1.8 |
80 |
6.0 |
0.38 |
3.5 |
4.5 |
1.05 |
4 |
2.5 |
|
34HS98-5004A |
1.8 |
98 |
5.0 |
0.5 |
4.0 |
6.8 |
1.55 |
4 |
3.0 |
|
34HS116-6004A |
1.8 |
116 |
6.0 |
0.6 |
6.8 |
8.5 |
1.8 |
4 |
3.5 |
|
34HS128-5004A |
1.8 |
128 |
5.0 |
0.6 |
5.0 |
9.0 |
2.2 |
4 |
3.9 |
|
34HS155-6004A |
1.8 |
155 |
6.0 |
0.75 |
8.5 |
11 |
2.5 |
4 |
4.2 |
Note(备注）：We can manufacture products according to customer’s requirement.（我们可以根据客户的要求进行定制）。
SR86偏心减速机技术参数GEARBOX Electrical Specifications

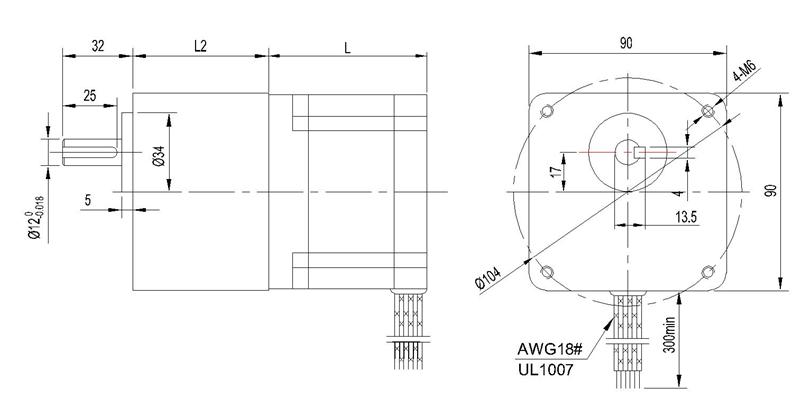

电机外形和安装尺寸Mechanical Dimensions unit=mm
