   Your current location:Home - Product center
 BRUSHLESS DC >> Brushless DC Gearbox Motor >> 86mm BRUSHLESS DC MOTOR WITH PLANETARY GEARBOX

   Explaintion


86BLF 系列 外径86mm直流无刷行星减速电机 86mm BRUSHLESS DC MOTOR WITH PLANETARY GEARBOX

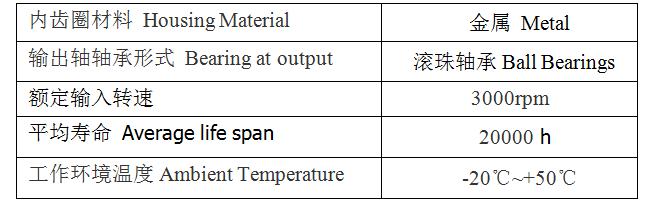

行星减速机常规参数 Planetary Gearbox Parameter

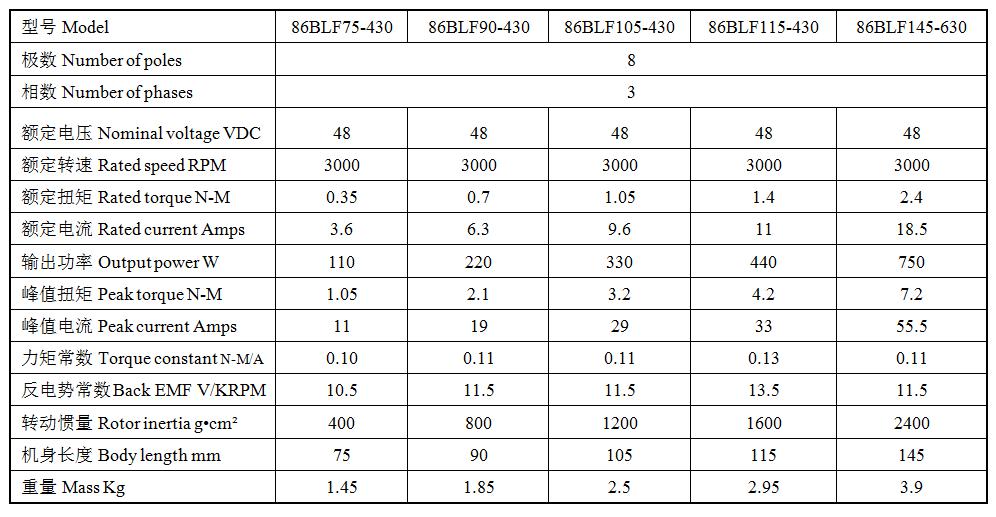

技术数据Electrical Specifications

Note(备注):We can manufacture products according to customers requirement.(我们可以根据客户的要求进行定制)。

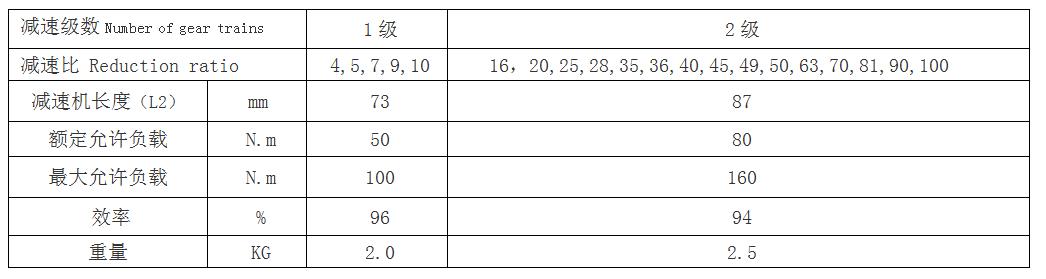

PL86行星减速机技术参数PLANET GEAR Electrical Specifications

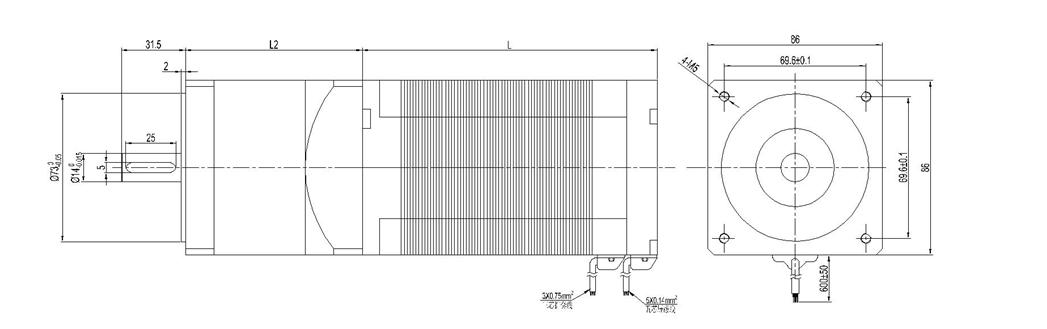

电机机械尺寸Dimensions unit=mm

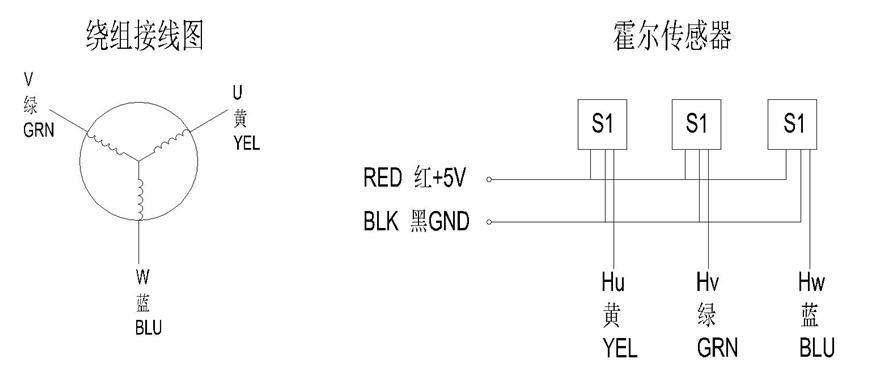

电机接线图Wiring Diagram

Clicks:144  Entry time:2020-01-03 【Print this page】 【Close
