 BRUSHLESS DC >> Brushless DC Gearbox Motor >> 57mm BRUSHLESS DC MOTOR WITH PLANETARY GEARBOX

   Explaintion


57BLY系列 外径 57mm 直流无刷行星减速电机 57mm BRUSHLESS DC MOTOR WITH PLANETARY GEARBOX

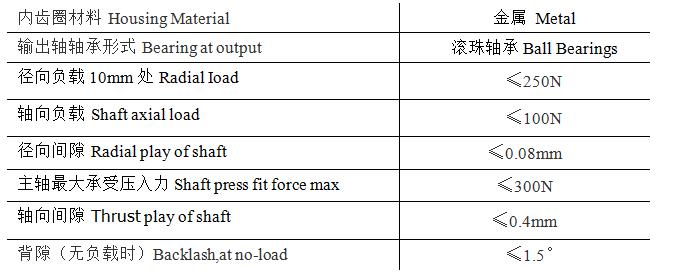

行星减速机常规参数 Planetary Gear box Parameter

Note(备注):We can manufacture products according to customers requirement.(我们可以根据客户的要求进行定制)。

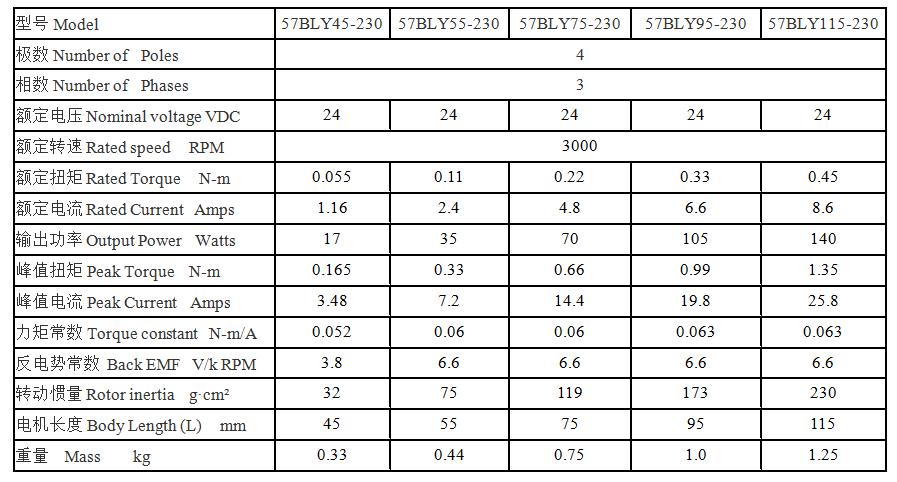

技术数据Electrical Specifications

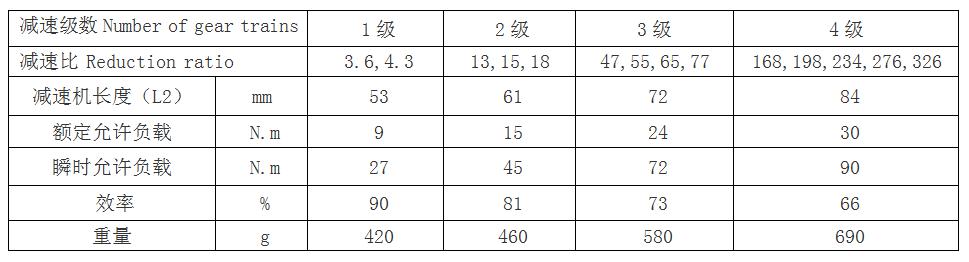

M56GXR行星减速机技术参数PLANET GEAR Electrical Specifications

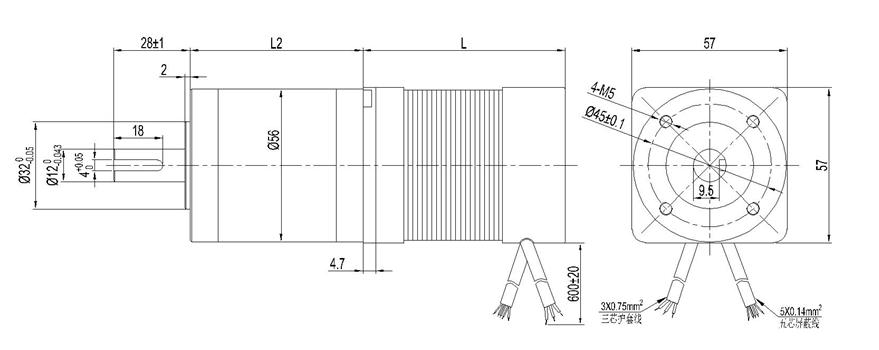

电机机械尺寸Dimensions unit=mm

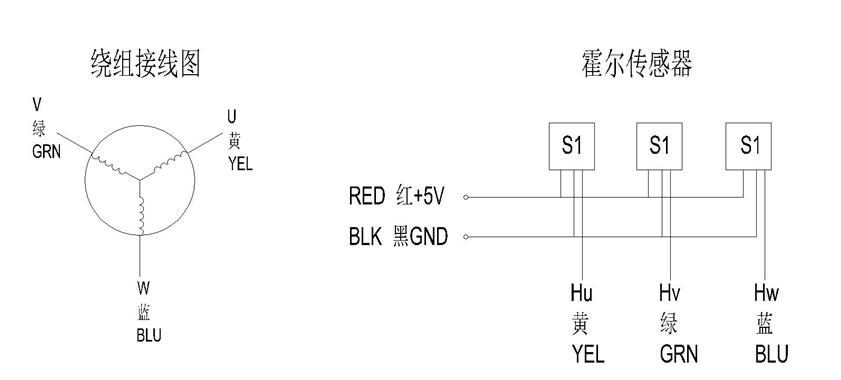

电机接线图Wiring Diagram
