 STEPPING MOTOR >> Hybrid Stepper Motor >> 14HS(35BYGH)

   Explaintion


Model:14HS35BYGH 1.8°)

Step Accuracy步距角精度)———————————±5%

Temperature Rise温升)—————————-80℃ Max.

Ambient Temperature Range工作环境温度)———- -20℃~+50℃

Insulation Resistance绝缘电阻)———–100MΩ Min.50V DC

Dielectric Strength介电强度)—————–500V AC 1minute

Electrical Specifications电机参数):

Series

Model

Step

Angle

(°)

Motor

Length

(mm)

Phase Current

(A)

Phase

Resistance

(Ω)

Phase

Inductance

(mH)

Holding

Torque

(N.cm Min)

Rotor

Inertia

(g.cm²)

Lead

Wire

(No.)

Motor

Weight

(g)

步距角

机身长

相电流(A)

相电阻(Ω)

相电感(mH)

静力矩(N.cm)

转子惯量(g.cm²

引出线

重量(g)

14HS20-0404A

1.8

20

0.4

22

16

5.0

9

4

90

14HS26-0804A

1.8

26

0.8

4.2

4.5

10

10

4

110

14HS28-0804A

1.8

28

0.8

5.0

5.0

12

11

4

120

14HS28-0406A

1.8

28

0.4

30

11

9

11

6

120

14HS34-0804A

1.8

34

0.8

6.5

9.8

18

13

4

160

14HS34-0406A

1.8

34

0.4

30

22

12

22

6

160

Note(备注):We can manufacture products according to customers requirement.(我们可以根据客户的要求进行定制)。

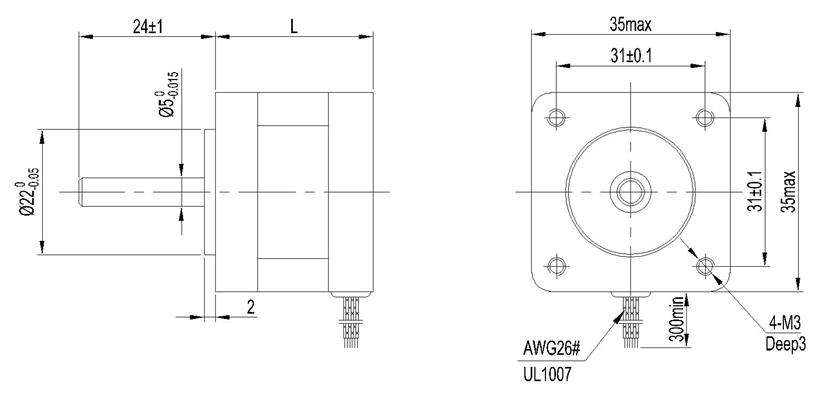

电机机械尺寸Dimensions unit=mm

电机接线图Wiring Diagram

Clicks:521  Entry time:2020-01-03 【Print this page】 【Close
