 STEPPING MOTOR >> Hybrid Stepper Motor >> 23HS(57BYGH)

   Explaintion


Model:23HS57BYGH 1.8°)

Step Accuracy步距角精度)———————————±5%

Temperature Rise温升)—————————-80℃ Max.

Ambient Temperature Range工作环境温度)———- -20℃~+50℃

Insulation Resistance绝缘电阻)———–100MΩ Min.50V DC

Dielectric Strength介电强度)—————–500V AC 1minute

Electrical Specifications电机参数):

Series

Model

Step

Angle

(°)

Motor

Length

(mm)

Phase Current

(A)

Phase

Resistance

(Ω)

Phase

Inductance

(mH)

Holding

Torque

(N.cm Min)

Rotor

Inertia

(g.cm²)

Lead

Wire

(No.)

Motor

Weight

(g)

步距角

机身长

相电流(A)

相电阻(Ω)

相电感(mH)

静力矩(N.m)

转子惯量(g.cm²

引出线

重量(g)

23HS41-2004A

1.8

41

2.0

1.2

2.5

0.55

150

4

470

23HS56-1504A

1.8

56

1.5

3.2

5.5

0.9

280

4

590

23HS56-3004A

1.8

56

3.0

1.1

3

1.0

280

4

680

23HS76-3004A

1.8

76

3.0

0.5

2.4

1.6

440

4

1050

23HS76-4004A

1.8

76

4.0

0.38

1.8

1.6

440

4

1050

23HS84-3004A

1.8

84

3.0

0.57

2.5

2.0

530

4

1130

23HS84-4004A

1.8

84

4.0

0.7

2.7

2.0

530

4

1130

23HS100-3004A

1.8

100

3.0

0.89

3.4

2.4

680

4

1250

23HS100-4204A

1.8

100

4.2

0.9

3.8

, 2.4

680

4

1250

23HS112-3004A

1.8

112

3.0

1.6

6.8

2.5

800

4

1400

23HS112-4204A

1.8

112

4.2

0.9

3.8

2.5

800

4

1400

Note(备注):We can manufacture products according to customers requirement.(我们可以根据客户的要求进行定制)。

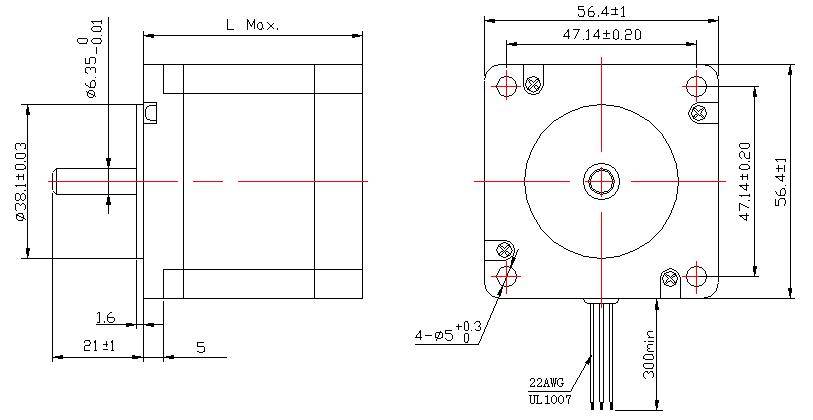

电机机械尺寸Dimensions unit=mm

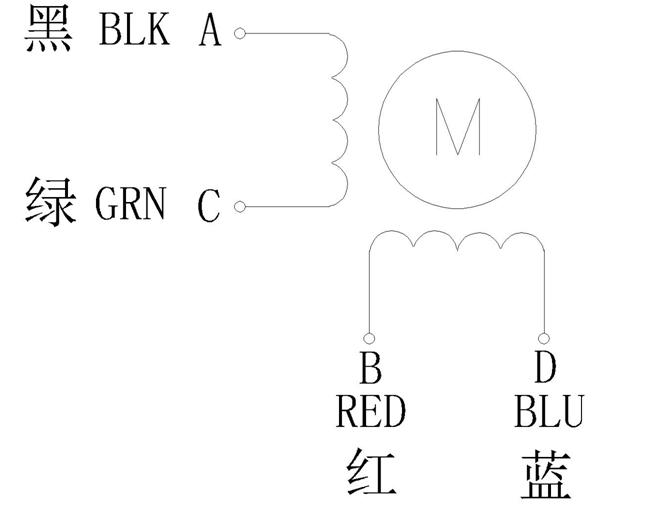

电机接线图Wiring Diagram

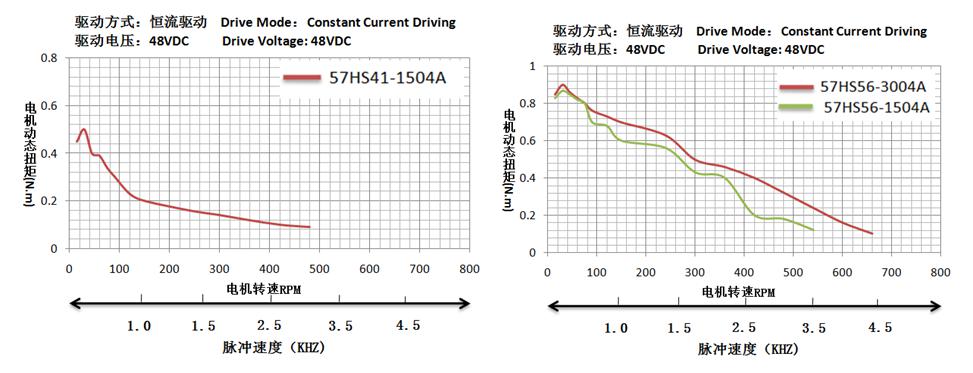

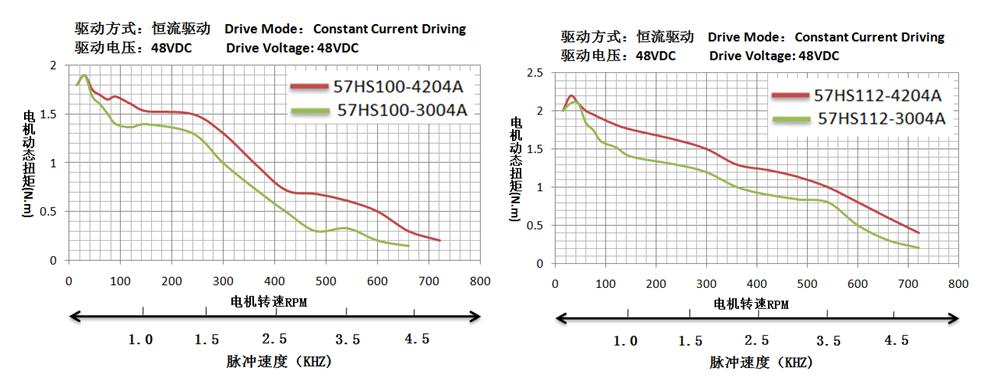

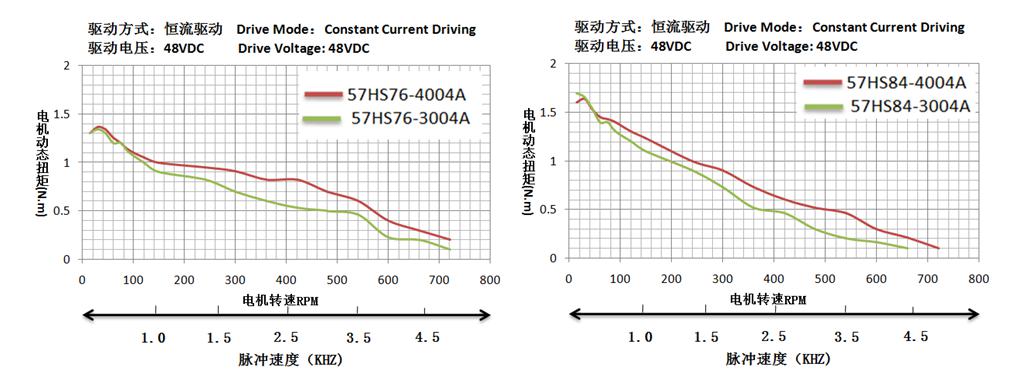

电机特性曲线图Motor characteristic curve

Clicks:182  Entry time:2020-1-3 【Print this page】 【Close
